Whether operated from a back room, poised on a deli counter, or suspended somewhere in between, Ishida's Uni-7 is a must for today's modern retail settings. The complete Uni-7 Series showcases models for every station type, each a completely networkable scale base and printer, and each a variation on the same highly functional Uni-7 interface.

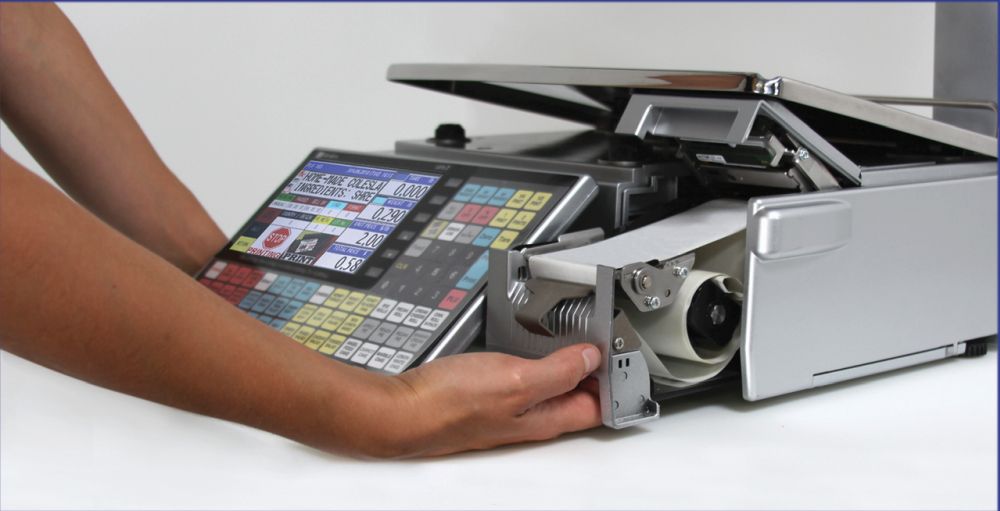

Front and center is the Uni-7's sleek titanium appearance and one-of-a-kind color touchscreen. Users can customize the display with their own unique product categories and PLUs. For the most lifelike experience, a tactile sensation and audible tone signals each press of a button. But that's just the beginning. Uni-7 is equipped with a quick-change, front-loading label cassette, and multilingual capability. Easily manage everything from frequent price changes to future meat and nutrition-labeling tasks. Innovation at its best, Ishida's Uni-7 Series is the tool of choice for unifying workspaces everywhere.

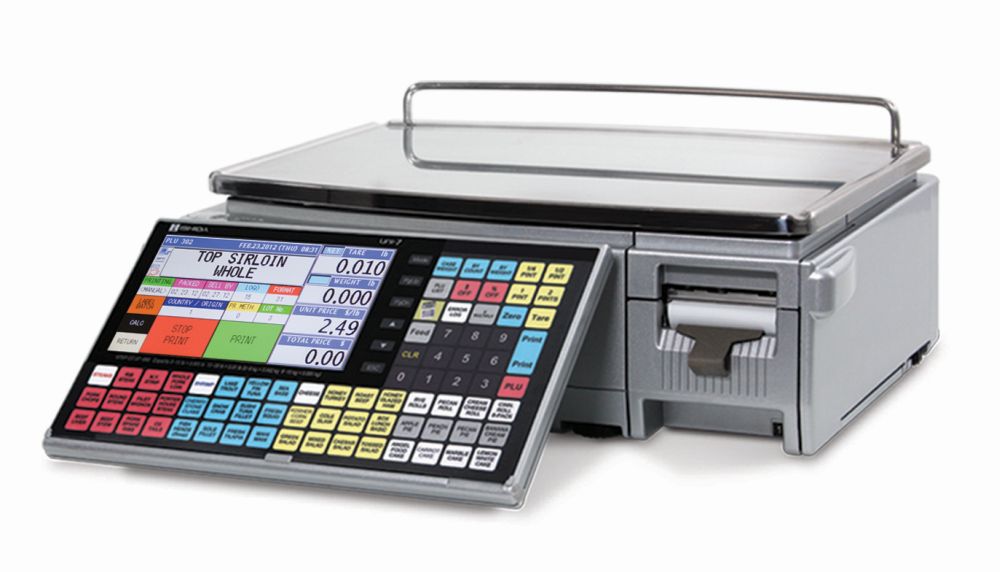

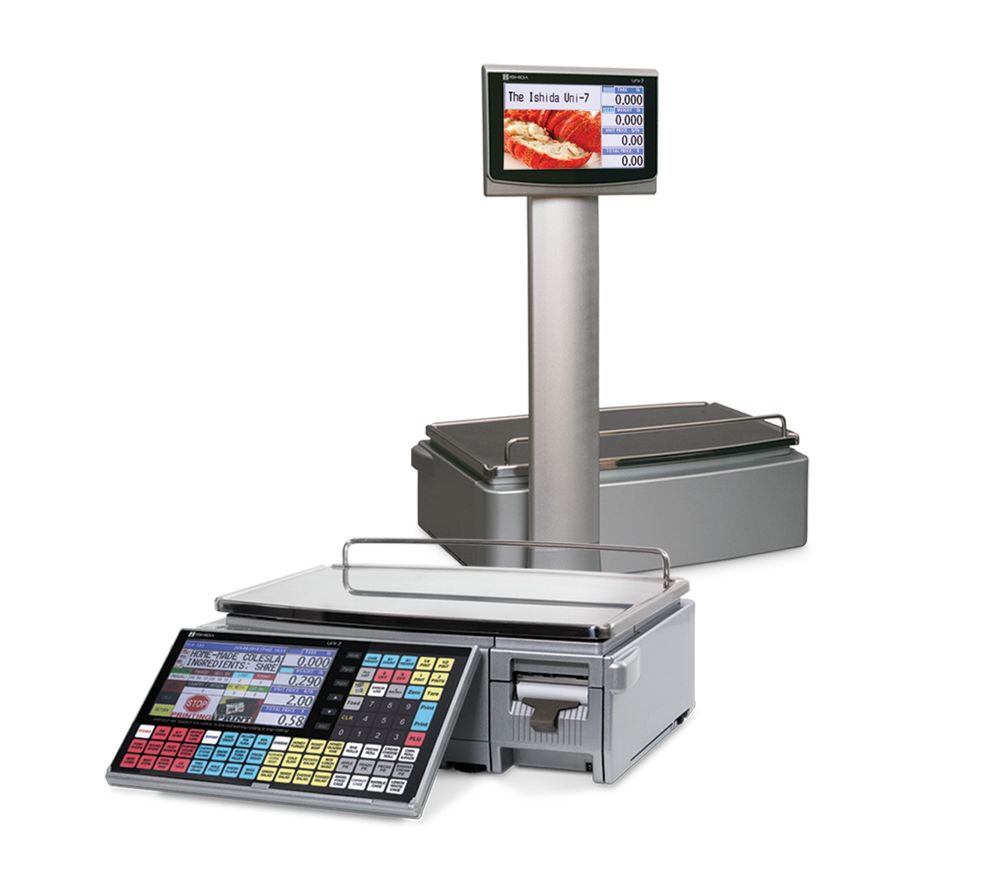

Bench and Pole - A perfect counter-level or bench-top device, this all-in-one scale offers weighing, printing and price computing. Advertise directly to your customers on their own full-color display, housed within the scale itself (bench model) or on an elevated pole.
Self-Serve - Thanks to a simple, customized large-button keypad and pole-mounted color display, self-service applications are more feasible than ever. Customers view images for each PLU and follow instructions to weigh and print labels for their own merchandise.
Capacity | 0-15 x 0.005 lb / 15-30 x 0.01 lb |
---|---|
Display |
Operator: color LCD, 7" Customer: color LCD, 7" |
Display Items |
Tare: four-digit Unit price: six-digits Weigh: five-digits Total price: six-digits |
Preset Keys | 1980: 20 x 99 pages |
Memory Capacity | 4 MB expandable to 2 GB |
Communications |
Static TCP/IP 10/100 Base T Ethernet |
Interface | USB port, back-up and restore only |
Platter | 15.7" x 10.8" (398 mm x 275 mm) |
Print Head | Direct thermal 2.2" head (56 mm) |
Printing Speed |
3.2 / 3.9 / 4.7 / 5.9 inches per second (80 / 100 / 120 / 150 mm per second) |
Label Size |
Width: 1.2" - 2.5" (30 - 64 mm) minimum Length: 0.8" - 7.9" (20 - 200 mm) maximum |
Label Roll |
Inside diameter: 1.6" (40 mm) Outside diameter: 3.9" (100 mm) |
Label Backing Paper | Width: up to 2.6" (66 mm) |
Power Supply | AC100-240 V, 50/60 Hz |
Power Consumption |
Stand-by: 50 W In operation: 120 W |
Approvals | NTEP CC 07-099, UL Listed |
