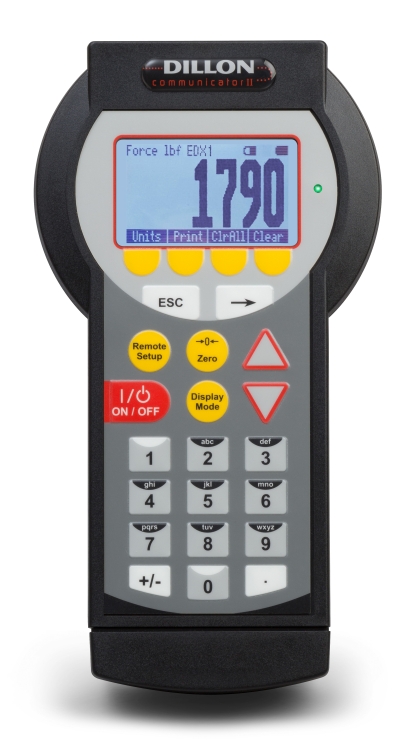

High-powered version of Communicator II with radio and alarm, for use with high-power EDXtreme models, NOT CE approved (DIL-PN AWT77-506958)

Item #AWT77-506958

Be the first to review this product

Availability: In stock

$3,575.00

Qty:

Accessories

Communicator II to EDXtreme cable, LEMO to LEMO, RS-485, 50 ft / 15 m (DIL-PN 36057-0071) (PN 36057-0071) SKU: 36057-0071 $350.00
Computer serial cable with 9-pin D connector, 12 ft / 3.6 m (DIL-PN 36057-0022MTS) (PN 36057-0022MTS) SKU: 36057-0022MTS $200.00
Mains power supply, 100-240 VAC/5V to RS-232 for "Red" EDXtreme/Communicator II/Quick Check (DIL-PN AWT25-501124) (PN AWT25-501124) SKU: AWT25-501124 $560.00
Protective rubber sleeve, gray, for Communicator II, recommended for outdoor applications (DIL-PN AWT20-508223) (PN AWT20-508223) SKU: AWT20-508223 $180.00
9-pin RS-232 to USB converter (DIL-PN AWT05-505714) (PN AWT05-505714) SKU: AWT05-505714 $115.00
Data export pack: includes all cables and interfaces to connect from the unit directly into PC (DIL-PN AWT05-509279) (PN AWT05-509279) SKU: AWT05-509279 $405.00

Overview

High-powered version of Communicator II with radio and backlight, for use with high-power EDXtreme models, NOT CE approved (PN AWT77-506958)

High-powered version of Communicator II with radio and alarm, for use with high-power EDXtreme models, NOT CE approved (DIL-PN AWT77-506958)

Specifications
Reviews

Details

The Communicator II can remotely view and control one or several EDXtreme instruments simultaneously via radio frequency. If the EDXtreme is not equipped with radio, then a RS-485 cable will be required between the EDXtreme and Communicator II. Information is easily sent to computer from a radio Communicator II via a serial cable.

Note: NOT CE approved

Communicator II Specifications:

Enclosure	Designed to NEMA 3/IP54 with optional sleeve. Suitable for protected outdoor use.
Instrument Size	9.5" x 5" x 2.5" (241 mm x 127 mm x 64 mm)
Accuracy	Not applicable. Only sends and receives digital information.
Display	128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
Battery Life	Up to 80 hours continuous radio using 4 "AA" alkaline batteries
Operating Temperature	-4°F to 158°F (-20°C to 70°C)
Connectors	Sealed connectors may be used for serial communications and wired connection to an EDXtreme dynamometer.
RS-232 Communication	Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Included with Remote	Carry case and batteries
Approvals	NOT CE approved

Radio Specifications:

FCC Certified	For unlicensed low power devices. No radio licensing or permits required for normal operation. (In the US and Canada. Check local ordinances in other countries.)
Frequency	ISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz
Output Level	10 mW (10 dBm)
Display Update Rate	1 time per second
Number of Links Remote Can Control	Up to 15 addresses
Configuration Address	Automatic and configurable
Antenna	Integral antenna
Range	Open-air range up to 600 feet (200 m), line-of-sight. Indoor range dependent upon environment with 300 feet (100 m) common, dependent on environment. Subject to CE marking. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications.
