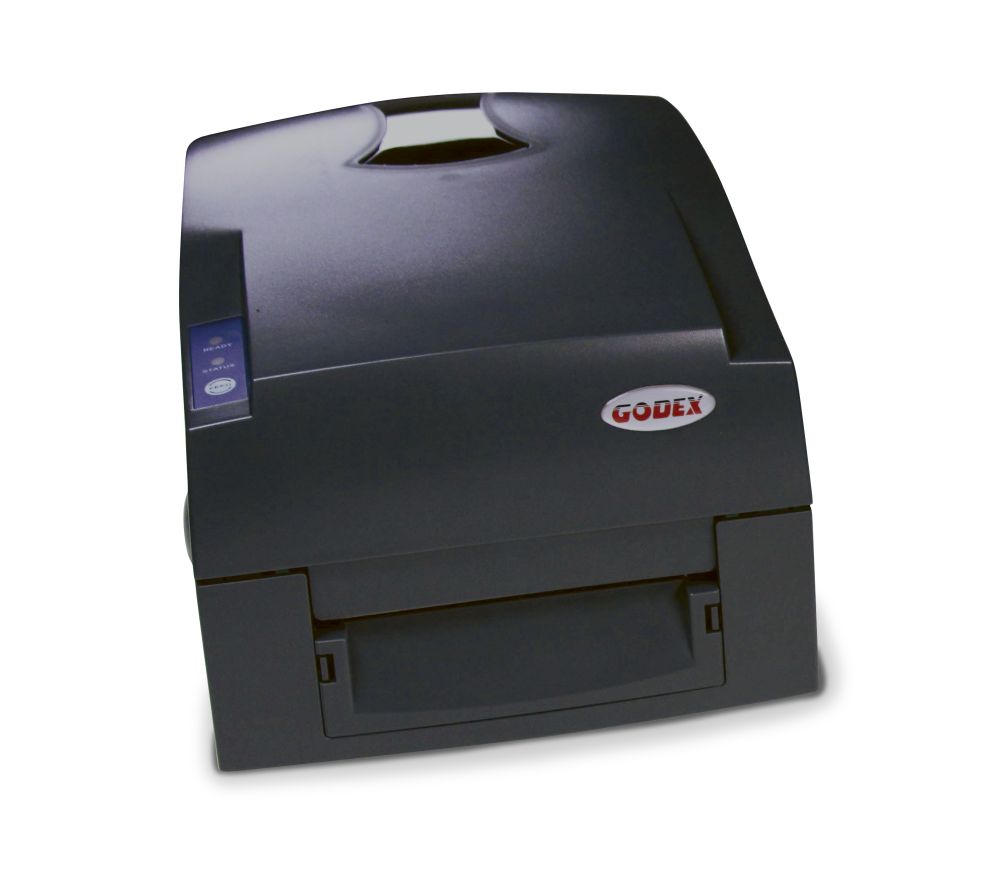

GoDEX G500 printer, 4" direct thermal/thermal transfer, 203 dpi, 110/240VAC (RLW-PN 132425)
GoDEX G500 printer, 4" direct thermal/thermal transfer, 203 dpi, 110/240VAC (RLW-PN 132425)

GoDEX G500 printer, 4″ direct thermal/thermal transfer, 203 dpi, 110/240VAC (RLW-PN 132425)

132425
Be the first to review this product

Availability: In Stock

$615.00

Accessories
  • Direct thermal label, 2.25″ W x 4.5″ L, 1″ core, 5″ diameter, 600 labels/roll (RLW-PN 65617) SKU: 65617 $17.50
  • Serial cable DB9 to 8-pin DIN, 5 ft (RLW-PN 64661) SKU: 64661 $69.00
  • Power cord, for Counterpart, DMC-782 (RLW-PN 15438) SKU: 15438 $25.00
  • Printer cable, DB9M to blunt male DB9 to blunt end cable, 5 ft, PINOUT: Black Pin-5, Red Pin-3, Green Pin-2 (RLW-PN 41276) SKU: 41276 $77.00
Overview
  • Auto language emulations GEPL, GZPL
  • Free GoLabel design software for EZPL or Q Label
  • 203 dpi (8 dot/mm)
  • Drop in media loading
  • USB or RS-232 interface
  • Plain, gap label, black, mark or fanfold label
  • Label length detection
  • 32-bit CPU
Print Speed 5 ips
Print Length

Minimum: 0.16"

Maximum: 68"
Print Width 4.25"
Media

Continuous form, gap labeling, black mark sensing and punched sensing

Label roll O.D. max: 5.0"
Core

1", 1.5"

Thickness: 0.06 mm to 0.20 mm
Ribbon

Core: 1"

Length: 300 m

Max ribbon roll OD: 2.67"

Wide: 1.18" to 4.33"
Printer Language GZPL or GEPL, EZ PL auto switch
Resident Fonts 11 resident alphanumeric fonts (included OCR A and B) are expandable eight times horizontally and vertically. All bit mapped fonts in eight orientations.
Bar Codes Code 39, Code 93, Code 128 (subset A, B, C,) UCC/EAN - 128 K-Mart, UCC/EAN - 128, UPC A/E (add on 2 and 5,) 2 of 5, EAN 8/13 (add on 2 and 5.) Codabar, Post Net, EAN 128, DUN 14, MaxiCode, HIBC, Plessey, Random Weight, Telepen, FIM, China Postal Code, RPS 128, PDF 417, Datamatrix code, QR Code
Dimensions (L x W x H) 11.2" x 8.9" x 6.8" (285 mm x 226 mm x 171 mm)
Interfaces Baud rate 4800 to 115,200; RS-232 (DB9F)
USB port U2.0 (B-type)
Ethernet (RJ-45)
Memory 8 MB flash
Power Auto switching 100/240 VAC 50/60 Hz
Environment

Operation: 41°F to 104°F (5°C to 40°C)

Storage: -4°F to 122°F (-20°C to 50°C)
Humidity

Operation: 30 to 85% non-condensing, free air

Storage: 10 to 90% non-condensing, free air
Approvals

CE (EMC), FCC Class A, CB, CUL, CCC
