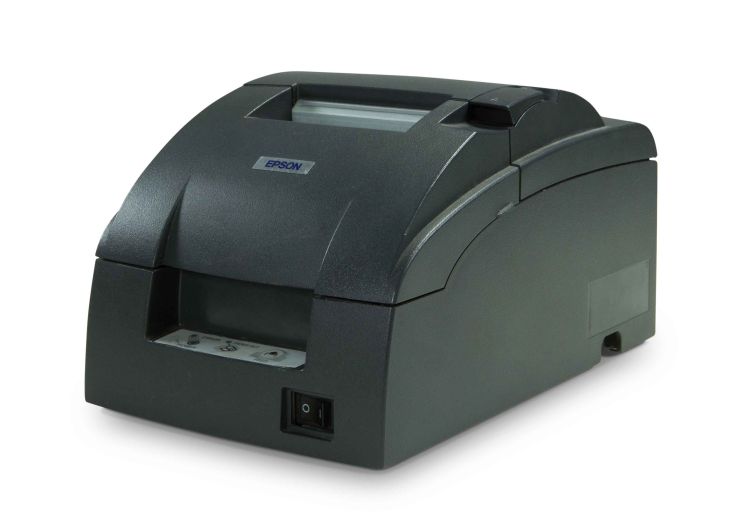

Epson TM-U220D Printer, RS-232, 115/230 VAC, gray (RLW-PN 81076)

Item #81076

Be the first to review this product

Availability: In stock

$445.00
Accessories
  • One-ply bond paper roll, 3" W x 150" L, 3" OD (RLW-PN 69916) (PN 69916) SKU: 69916 $5.25
  • Printer cable, blunt end, 25-pin D-sub male RS-232 serial interface cable (Rice Lake indicators) (RLW-PN 15547) (PN 15547) SKU: 15547 $70.00
  • Printer cable, 25-pin D-sub male to 25-pin RS-232 serial interface cable (RLW-PN 15568) (PN 15568) SKU: 15568 $70.00
Overview

  • 9-Pin dot matrix print head

  • High-speed 4.7 to 6.0 lines per second printing

  • Drop-in paper set and auto paper loading

  • Automatically transmits changes in printer status

  • RS-232 (DB-25F connector)

  • Optional connect-it cartridges for parallel, USB, 10 Base-T

  • Uses MI88D mechanism

Epson TM-U220D Printer, RS-232, 115/230 VAC, gray (RLW-PN 81076)

Details

Print Speed Approximately 4.7 lines per second
Column Capacity 40/42 or 33/35 columns
Characters per Line 40 characters
Print Area 3" ( 76.2 mm) W
Character Formation 7 x 9 and 9 x 9 dot matrix
Character Height 0.12 standard font
Character Set 95 alphanumeric characters, 37 international characters, 128 x 12 graphic characters
Line Spacing 0.17" (4.32 mm)
Print Head Life Approximately 100 million strokes/pin
Form Thickness 0.002" to 0.003" ( 0.06 mm to 0.085 mm)
Ribbon Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints). Black ink is also available.
Serial Interfaces RS-232 compatible (25-pin D-sub)
Baud Rates 4800, 9600
Parity Seven or eight bits, none, even or odd
Operating Temperature 32°F to 122°F (0°C to 50°C)
Stop Bits One or more
Handshaking DTR/DSR or XON/XOFF control selectable
Overall Dimensions (W x D x H) 6.3" x 9.7" x 5.4" (160 mm x 248 mm x 138.5 mm)
Approvals UL listed, CSA-certified, CE marked
