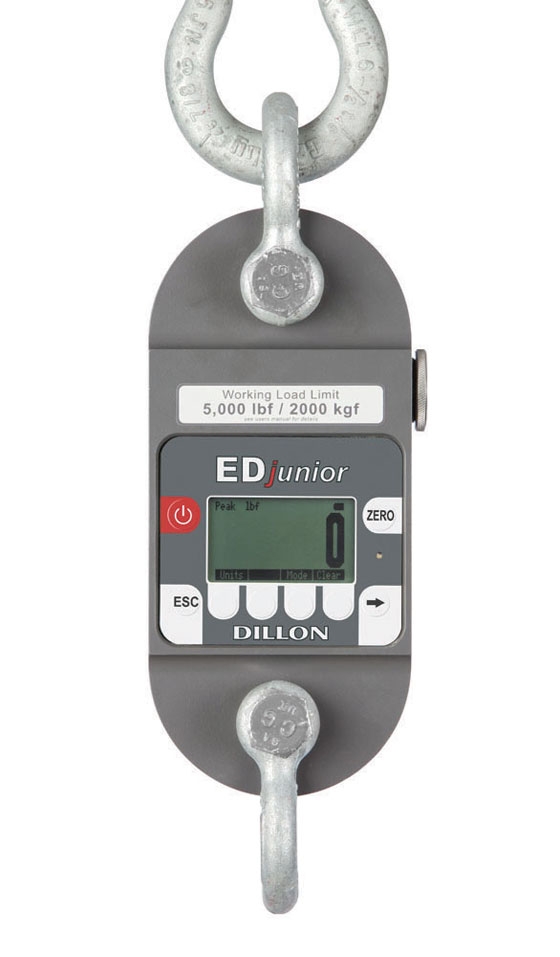

Dillon EDjr-2T (5K) "Red" EDjunior Dynamometer, 5,000 lbf, with two Green Pin anchor shackles

Item #AWT05-506318

Be the first to review this product

Availability: In stock

$2,160.00
Overview
  • Simple design and easy operation

  • Sturdy aircraft-quality aluminum

  • High-resolution dot-matrix LCD display

  • Softkey interface

  • NEMA 4X / IP 55

  • Easy access battery compartment

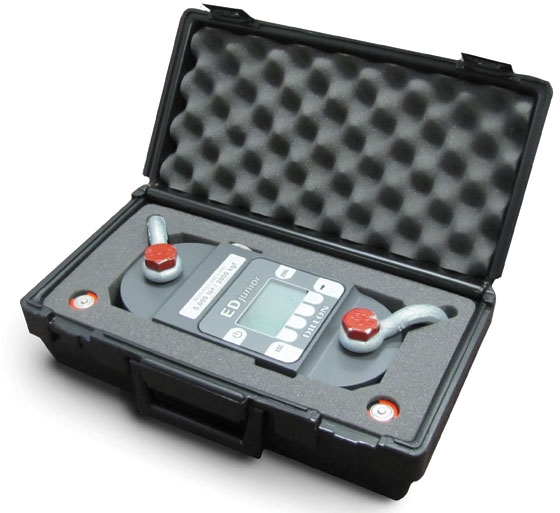

  • Carry case included

  • 2 years parts and labor manufacturer warranty


Dillon EDjr-2T (5K) "Red" EDjunior Dynamometer, 5,000 lbf, with two Green Pin anchor shackles

Details

The EDjunior is an extremely well-built instrument that gets straight to the point - apply a load and take a reading. Its Spartan design is a direct response to industries that have wanted a well-built instrument that could be relied upon for simple, yet critical measurements of force and weight.

Capacity x Resolution - lbf 5000 x 5 (normal/enhanced)
Capacity x Resolution - kgf 2000 x 2 (normal/enhanced)
Capacity x Resolution - N 20,000 x 20 (normal/enhanced)
Construction Aircraft-quality 2024 aluminum
Enclosure Designed to NEMA 4X / IP55. Suitable for continuous outdoor use.
Accuracy 0.2% of capacity
Repeatability 0.2% of capacity
Proof Load 150% of capacity
Ultimate Overload 700%
Safe Overload 200%
Display 128 x 64 dot-graphic LCD display shows all digits 1.0" (26 mm) high plus annunciators and softkeys
Display Update Rate 2 times per second
Peak Hold Sampling Rate 10 times per second typical
RS-232 Communication Not available. See Dillon EDXtreme.
Calibration Traceable to the National Institute of Standards and Technology. Calibration card included.
Battery Life 425 hours typical use with two C-cell alkaline batteries
Operating Temperature -4°F to 158°F (-20°C to 70°C)
Included with Instrument Carry case, batteries, manual and calibration card
Unit Weight (with shackles) 7.8 lb (3.9 kg)
Overload Recorded at 120% with date and time stamp
