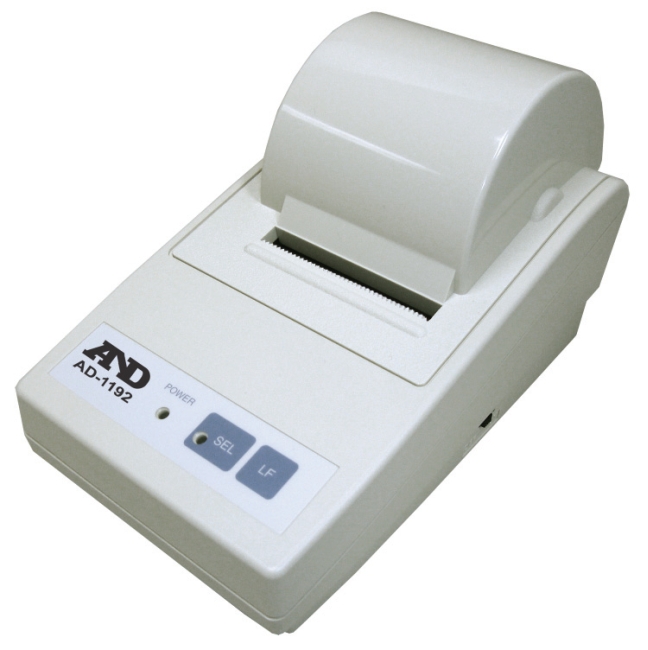

Compact Printer, cable not included (A&D-PN AD-1192)

Item #AD-1192

Be the first to review this product

Availability: In stock

$555.00
Accessories
  • Replacement ribbon for AD-1192 printer (A&D-PN AD-1192-1) (PN AD-1192-1) SKU: AD-1192-1 $35.00
  • RS-232C interface cable, 25 pin male to 25 pin male (A&D-PN KO:1131) (PN KO:1131) SKU: KO:1131 $50.00
  • Roll paper, 5 rolls, for AD-1192, AD-8127, AD-1191, AD-8118, AD-1131 (A&D-PN WP:PP137) (PN WP:PP137) SKU: WP:PP137 $15.00
  • RS-232C interface cable, 25 pin male to 9 pin male (A&D-PN KO:WW9-25) (PN KO:WW9-25) SKU: KO:WW9-25 $55.00
  • RS-232C interface cable (A&D-PN KO:WW25-7) (PN KO:WW25-7) SKU: KO:WW25-7 $55.00
  • Replacement power cord for AD-1192 printer (A&D-PN AD-1192-2) (PN AD-1192-2) SKU: AD-1192-2 $75.00
Overview

  • Compact and light weight

  • Uses standard 2 1/4" paper

  • High speed printing

  • Paper near-end detection function

  • RS-232C interface

  • Low power consumption

  • Wall mountable

  • Please note: the AD-1192 does NOT ship with a connecting cable.

Compact Printer, cable not included (A&D-PN AD-1192)

Details

The AD-1192 is a compact, palm-sized dot-impact printer that provides users with essential functions.

Printing Method Dot matrix
Print Direction Unidirectional
Character Configuration (W x H) (4+0.5) x 8
Number of Columns 40 columns: 180 dots/line
Print Speed Approximately 1.8 lines/second
Character Size (W x H) 1.08 x 2.4 mm
Character Spacing 1.19 mm
Line Pitch 3.52 mm
Paper Feed Speed Approximately 3.6 lines/second
Paper Uses standard 2 1/4" paper
Input Buffer 2 K bytes
Ink Ribbon Black; service life approximately 250,000 characters
Power Supply DC 7V ± 1V (Printing). Use exclusive adapter (DC 7V 1.6 A)
Power Consumption Printing: approximately 7VA
Stand-by: approximately 0.5VA
Weight Approximately 470 g
Operating Temperature 0°C ~ 40°C, 35-85% RH (without condensation)
Storage Temperature 20°C ~ 60°C, 10-90% RH (without condensation)
Reliability MCBF 1 million lines
