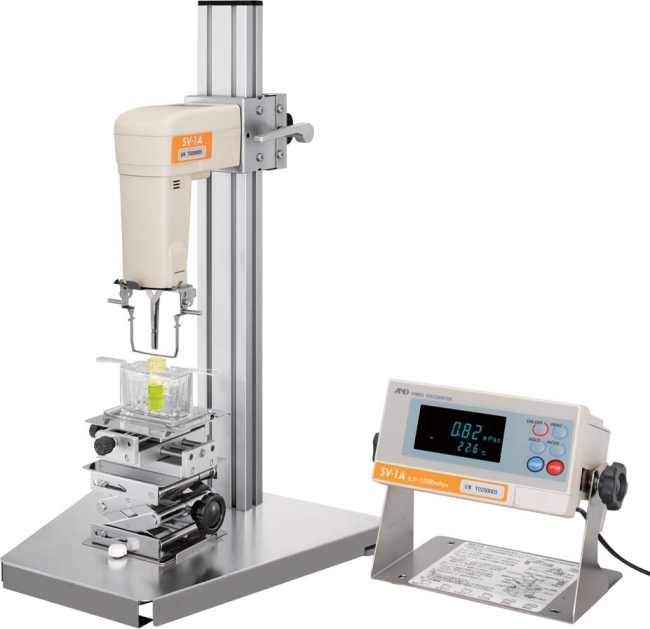

A&D SV-1A Viscometer, 0.3 cP - 1000 cP

Item #SV-1A

Be the first to review this product

20%off

Availability: In stock

List Price: $7,635.00

Now: $6,108.00

You Save $1,527.00
Accessories
  • WinCT Viscosity software set, for RV Series (A&D-PN SV-53) (PN SV-53) SKU: SV-53 $1,175.00
  • AC adapter, 120V, for FC-i, FC-Si, HR-i, GP, SV-10/-100, SV-A, GH, FR, FP, HA, HX (A&D-PN TB:636) (PN TB:636) SKU: TB:636 $45.00
  • Anti-vibration table (slab) for viscometers and rheometers (A&D-PN AD-1671A) (PN AD-1671A) SKU: AD-1671A $2,040.00
  • AC adapter, 220V, for HR-i, GP, SV-10/-100, SV-A, GH, FC-i, FC-Si, FC, FP, FR, HA, HX (A&D-PN TB:137) (PN TB:137) SKU: TB:137 $65.00
  • Sample cup, 2 ml, glass x 5 pcs, 2 ml sample cup stand x 1 pc (A&D-PN SV-59) (PN SV-59) SKU: SV-59 $450.00
  • Sample cup, 2 ml with lid, polycarbonate x 100 pcs (A&D-PN SV-58) (PN SV-58) SKU: SV-58 $220.00
  • 2 ml sample cup stand x 2 pcs (A&D-PN SV-57) (PN SV-57) SKU: SV-57 $165.00
  • 2 ml sample cup holder, polycarbonate, black x 5 pcs (A&D-PN SV-56-2) (PN SV-56-2) SKU: SV-56-2 $165.00
  • 2 ml sample cup holder, polycarbonate, transparent, 5 pcs (A&D-PN SV-56-1) (PN SV-56-1) SKU: SV-56-1 $165.00
  • Cup set for SV-1A (A&D-PN SV-55) (PN SV-55) SKU: SV-55 $790.00
  • 10 ml polycarbonate sample cup, 10 pcs/set, for SV, SV-A and RV Series (A&D-PN SV-34) (PN SV-34) SKU: SV-34 $105.00
  • USB to 25 pin RS-232 converter (A&D-PN AX-USB-2920-25P) (PN AX-USB-2920-25P) SKU: AX-USB-2920-25P $95.00
  • Viscometer carrying case (A&D-PN CC:SV) (PN CC:SV) SKU: CC:SV $705.00
  • Extension cable, sensor to display, 5m, for SV, SV-A and RV Series (A&D-PN SV-43) (PN SV-43) SKU: SV-43 $375.00
  • Analog voltage output 0-1V, for SV, SV-A and RV Series (A&D-PN SV-42) (PN SV-42) SKU: SV-42 $815.00
  • Water bath container, for use with 10 ml cups, for SV, SV-A and RV Series (A&D-PN SV-37) (PN SV-37) SKU: SV-37 $225.00
  • Position fixer for sensor unit, for SV, SV-A and RV Series (A&D-PN SV-36) (PN SV-36) SKU: SV-36 $210.00
  • 13 ml glass sample cup, 1 pcs, for SV, SV-A and RV Series (A&D-PN SV-35) (PN SV-35) SKU: SV-35 $335.00
  • 45 ml polycarbonate sample cup, 10 pcs/set, for SV, SV-A and RV Series (A&D-PN SV-33) (PN SV-33) SKU: SV-33 $125.00
Overview

  • 2 ml sample

  • Simple operation and short measurement time

  • Wide measurement range of Newtonian fluids

  • Standard RS-232C interface

  • Real-time display

  • High measurement accuracy

  • Low viscosity samples

  • 2 year manufacturer warranty

A&D SV-1A Viscometer, 0.3 cP - 1000 cP

Details

The SV-A Series continues the revolution of the vibro viscometer technology. This new range allows for the accurate measurement of sample sizes as small as 2 ml with 1% accuracy. The SV-A features a host of options ensuring the unit can be configured to provide you with optimum measurement conditions.

Measurement Method Tuning fork vibration method (natural frequency at 30 Hz)
Viscosity Measurement Unit mPa•s, Pa•s, cP, P
Viscosity Measurement Range 0.3 - 1000 mPa•s
Repeatability 1% of reading (S.D., 20 - 30°C, no condensation)
Accuracy ±5% (1~100 mPa•s)
Minimum Sample Amount 2 ml~
Temperature Measurement 0° - 160°C / 0.1°C (32° - 320°F / 0.1°F)
Display Vacuum fluorescent display (VFD)
Power Supply AC adapter (approximately 14VA)
External Dimensions (W x D x H) Main unit: 112 mm x 132 mm x 291 mm (4.4" x 5.2" x 11.5")
Display unit: 238 mm x 132 mm x 170 mm (9.4" x 5.2" x 6.7")
Weight Main unit: approximately 0.8 kg (1.8 lb)
Display unit: approximately 1.3 kg (2.9 lb)
