Details

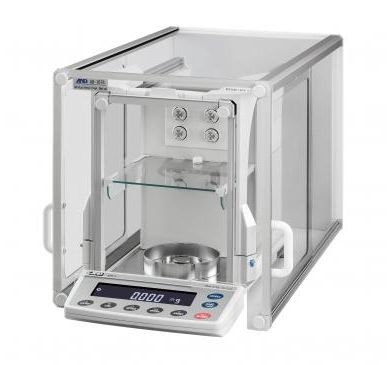

Bring confidence to your lab with the Ion BM Series of micro balances. With a capacity up to 520 g, or with readability down to 1 µg, the Ion BM Series can handle even trace quantities of valuable or degradable substances with confidence.

The fan-less, integrated, direct current ionizer eliminates static and comes standard on all Ion BM models. The automatic response adjustment function is powered by the embedded sensors to deliver fast and stable results to compensate for environmental variables such as temperature, humidity, vibration and atmosphere.

Weighing Capacity	2.1/5.2 g *
Readability	0.001/0.01 mg
Repeatability (Standard Deviation)	0.01/0.04 mg (repeatability using a 1 g weight within the weighing capacity)
Linearity	±0.010/0.02 mg
Minimum Weight (typical)	5.0 mg (pursuant to the United States Pharmacopoeia (USP), Chapter 4.1)
Stabilization Time (set to FAST)	Approximately 8/10 seconds
Sensitivity Drift (10°C to 30°C)	±2 ppm / °C (when automatic self calibration is not used)
Operating Temperature	5°C to 40°C (41°F to 104°F), 85% RH or less (non-condensing)
Display Refresh Rate	5 times/second or 10 times/second
Measurement Units (Display Mode)	g, mg, oz, ozt, ct, momme, dwt, GN, messghal, pieces (counting mode), % (percent mode), specific gravity (tael and tola can be added upon request)
Counting Mode	Minimum unit mass = 0.1 mg / number of samples = 10, 25, 50 or 100 pieces
Percent Mode	Minimum 100% ref. mass = 10.0 mg / minimum 100% display = 0.01%, 0.1%, 1% (depends on the reference mass stored)
Internal Memory	200 sets weighing data / 100 sets with date & time / 50 sets of calibration data
External Data Logger	Store up to 5,000 weighing results with date & time to AD-1688 (standard)
Data Output	GLP / GMP / GCP / ISO compliant. Outputs: balance manufacturer, model, s/n, balance identification number, data, time of calibration, mass used, and space for signature.
Standard Interface	RS-232C, Quick USB, external key plug for optional foot switch (PN SW:128)
Internal Calibration	Motor-driven internal calibration
External Calibration Masses (g)	5, 2, 1
Ionizer Electrode Pin Life	Approximately 10,000 hours of continuous use (user replaceable)
Weighing Pan Diameter	25 mm (50 mm, 95 mm for weighing filters optional)
Power Consumption	Approximately 30 VA (supplied by the AC adapter)
External Dimensions	259 W x 466 D x 326 H mm (10.2" W x 18.3" D x 12.8" H)
Weight	Approximately 24 kg (include AD-1676)

* Smart range function: the minimum weighing value switches to 0.01 mg automatically when the display value exceeds 5.1 g but returns to 0.001 mg by pressing the RE-ZERO (tare) key.
