Details

HW-C & HW-CP Bench Scale Series features enhanced resolution throughout the entire capacity range, along with bright 3-5-7 segment color comparator function for checkweighing and a 10-digit keypad to make entry of comparator and tare values quick and easy. Weighs in lbs, kg, oz. Weighing modes include parts counting and accumulation function for totaling weigh data.

Capacity x Resolution (kg)	220 kg x 0.02 kg
Capacity x Resolution (lb)	500 lb x 0.05 lb
Capacity x Resolution (oz)	8,000 oz x 1 oz
Counting Mode	Maximum countable number: 110,000 Number of samples: 5, 10, 20, 50 or 100
Stabilization Time *	Within 1.5 seconds
Repeatability (std. deviation)	0.04 kg
Linearity	±0.04 kg
Sensitivity Drift	±20 ppm / °C (5° C to 35 °C / 41° F to 95° F)

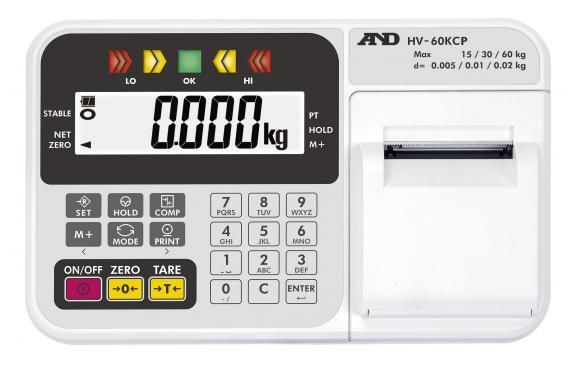

Display	7 segment LCD (Character height: 25 mm) with backlight; 3-color, 5-step LED comparator lights
Display Update	10 times / second
Operating Temperature	-10°C to 40°C (14°F to 104°F), less than 85% RH (non-condensing)
Power Supply	AC adapter
Weighing Pan Size (W x D)	390 mm x 530 mm (15.4" x 20.9")
Dimensions (W x D x H)	390 mm x 712 mm x 773 mm (15.4" x 28.0" x 30.4")
Weight	Approximately 18 kg (40 lb)

* Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
