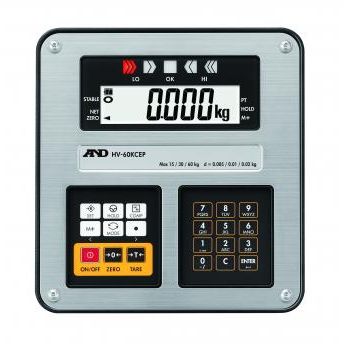

A&D HW-CEP Series HW-60KCEP Intrinsically Safe Scale, 150 lb x 0.01 lb, FM approved

Item #HW-60KCEP

Be the first to review this product

25%off

Availability: In stock

List Price: $2,700.00

Now: $2,026.00

You Save $674.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $100.00
Overview

  • Intrinsically safe, FM approved Class 1, Division 1, C&D, T4

  • IP65 rated base for both dust and water

  • SUS430 stainless steel weigh pan

  • LCD display with backlight

  • Battery operation

  • Accumulator function

  • Comparator mode

A&D HW-CEP Series HW-60KCEP Intrinsically Safe Scale, 150 lb x 0.01 lb, FM approved

Details

The HW-CEP bench scale family is designed to weigh safely in potentially explosive atmospheres. The intrinsically safe product design ensures the highest level of safety and complies with the latest hazardous area standards. The fully configurable, large 5 segment lights enable fast, accurate checkweighing. auto-tare, accumulation and counting features add to the benefits of this truly versatile hazardous area scale.

Capacity x Resolution (kg) 60 kg x 0.005 kg
Capacity x Resolution (lb) 150 lb x 0.01 lb
Capacity x Resolution (oz) 2,400 oz x 0.2 oz
Counting Mode

Maximum countable number: 120,000

Number of samples: 5, 10, 20, 50 or 100
Response Time * Within 1.5 seconds
Repeatability (std. deviation) 0.01 kg
Linearity ±0.01 kg
Sensitivity Drift (typical) ±20 ppm / °C (5° C to 35 °C / 41° F to 95° F)
Display 7 segment LCD (Character height: 25 mm) with backlight; 3-color, 5-step LED comparator lights
Display Refreshment Rate 10 times / second
Operating Temperature -10°C to 40°C (14°F to 104°F), 85% RH or less (no condensation)
Power Supply Four "D" size alkaline, 1.5 V batteries. Only DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XI) can be used (but not mixed).
Battery Life (approximately) 1,500 hours with LED and backlight OFF or 1,000 hours with LED and backlight ON
Weighing Pan Size (W x D) 330 mm x 424 mm (13.0" x 16.7")
Dimensions (W x D x H) 330 mm x 585 mm x 776 mm (13.0" x 23.0" x 30.6")
Weight Approximately 12 kg (26.5 lb)

* Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
