A&D HW-C Series HW-10KC High Resolution Scale, 20 lb x 0.002 lb

Item #HW-10KC

Be the first to review this product

25%off

Availability: In stock

List Price: $1,150.00

Now: $863.00

You Save $287.00
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $115.00
Accessories
  • Swivel/lock caster for 30 lb and below capacities (each), for FG-K, HW-C/P, and HV-CWP Series (A&D-PN HVW-16SSC) (PN HVW-16SSC) SKU: HVW-16SSC $50.00
  • 2.5" diameter non-skid foot, each (A&D-PN FT:10) (PN FT:10) SKU: FT:10 $25.00
  • USB to DIN RS-232 converter (A&D-PN AX-USB-2920-DIN) (PN AX-USB-2920-DIN) SKU: AX-USB-2920-DIN $75.00
  • 9-pin RS-232 to USB converter with cable (A&D-PN AX-USB-2920-9P) (PN AX-USB-2920-9P) SKU: AX-USB-2920-9P $65.00
  • AC adapter, 120VAC, for EJ, EK-i, EW-i, HC-i, HD, FG-K, HL-i, HL-WP, HT, HV/W-C (only, not CP), HV-GL, SF/SG, SK, SK-WP, FG, FS, FW, HC, SG (A&D-PN TB:662) (PN TB:662) SKU: TB:662 $45.00
  • USB interface for HV-C/CP and HW-C/CP Series (A&D-PN HVW-02CB) (PN HVW-02CB) SKU: HVW-02CB $110.00
  • RS-232C interface for HV-C/CP and HW-C/CP Series (A&D-PN HVW-03C) (PN HVW-03C) SKU: HVW-03C $110.00
  • Comparator relay out/buzzer for HV-C/CP and HW-C/CP Series (A&D-PN HVW-04C) (PN HVW-04C) SKU: HVW-04C $190.00
  • Extension cable, 5 m for HV-C/CP and HW-C/CP Series (A&D-PN HVW-08C) (PN HVW-08C) SKU: HVW-08C $400.00
  • Wall mount bracket for HV-C/CP and HW-C/CP Series (A&D-PN HVW-11C) (PN HVW-11C) SKU: HVW-11C $112.00
Overview

  • High resolution

  • IP65 dust and water protection for base (load cell and stainless steel pan)

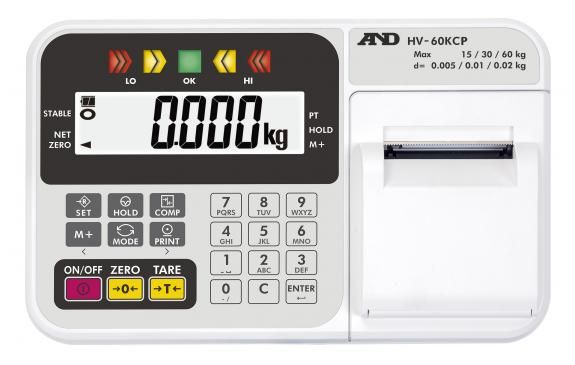

  • Backlit LCD display with bright multi-colored 5-step LED comparator lights

  • AC or battery operation

  • Accumulator function

  • Comparator mode

  • Optional USB or RS232 available separately

  • GLP/GMP/ISO compliant

A&D HW-C Series HW-10KC High Resolution Scale, 20 lb x 0.002 lb

Details

HW-C & HW-CP Bench Scale Series features enhanced resolution throughout the entire capacity range, along with bright 3-5-7 segment color comparator function for checkweighing and a 10-digit keypad to make entry of comparator and tare values quick and easy. Weighs in lbs, kg, oz. Weighing modes include parts counting and accumulation function for totaling weigh data.

Capacity x Resolution (kg) 10 kg x 0.001 kg
Capacity x Resolution (lb) 20 lb x 0.002 lb
Capacity x Resolution (oz) 320 oz x 0.05 oz
Counting Mode

Maximum countable number: 100,000

Number of samples: 5, 10, 20, 50 or 100
Stabilization Time * Within 1.5 seconds
Repeatability (std. deviation) 0.002 kg
Linearity ±0.002 kg
Sensitivity Drift ±20 ppm / °C (5° C to 35 °C / 41° F to 95° F)
Display 7 segment LCD (Character height: 25 mm) with backlight; 3-color, 5-step LED comparator lights
Display Update 10 times / second
Operating Temperature -10°C to 40°C (14°F to 104°F), less than 85% RH (non-condensing)
Power Supply AC adapter or four D batteries (approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF)
Weighing Pan Size (W x D) 250 mm x 250 mm (9.8" x 9.8")
Dimensions (W x D x H) 275 mm x 474 mm x 368 mm (10.8" x 18.7" x 14.5")
Weight Approximately 6 kg (13 lb)

* Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
