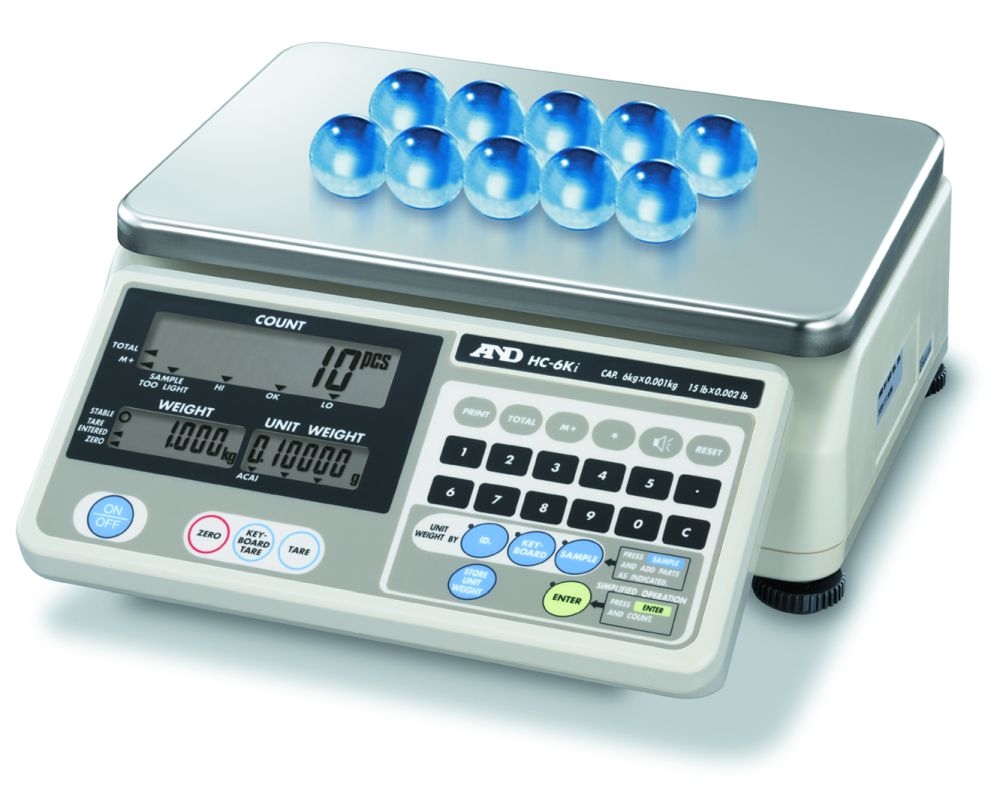

HC-i Series counting scales offer simple and easy operation. A&D’s exclusive Automatic Count Accuracy Improvement automatically corrects errors caused by variation in unit weights. The Audible Weighing Assist function alerts you when approaching the target quantity. Unique accumulation function allows for storing total piece count in memory and works in automatic or manual mode.
Capacity x Resolution (kg) | 3 x 0.0005 |
---|---|
Capacity x Resolution (lb) | 6 x 0.001 |
Sample Size | 10 pieces normal - 5, 25, 50, 100 or random number, user selectable |
Minimum Unit Weight* | 0.1 g / 0.005 g |
Internal Resolution | 1/600,000 |
Non-linearity | ±0.5 g |
Repeatability | 0.5 g |
Span Drift | 0.002% / °C (5°C to 35°C / 41°F to 95°F) typical |
Operating Temperature | -10°C to 40°C / 14°F to 104°F, 85% RH or lower (no condensation) |
Display | 7 segment LCD, character height: pcs 18.6 mm, weight/unit weight 11.4 mm |
Display Update | Approximately 10 times per second |
Maximum Count Display | 600,000 |
Interface | Optional RS-232C |
Power | AC adapter or optional SLA battery (battery operating time: approximately 80 hours without interface) |
Platform Size | 300 mm x 210 mm (11.8" x 8.3") |
Dimensions (W x D x H) | 315 mm x 331 mm x 126 mm (12.4" x 13" x 5") |
Weight | Approximately 4.8 kg (10.6 lb) |
Calibration Weight | 3 kg ±0.1 g |
Standard Accessories | Instruction manual, AC adapter |
* Minimum unit weight varies according to the function setting (F-02-03)
