Details

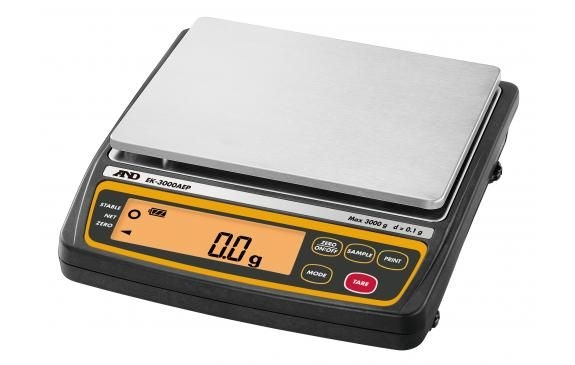

The EK-AEP series of internationally certified, intrinsically safe balances is compact, lightweight and economical, bringing ease and security to anyone who needs to perform precise weight measurement in potentially explosive and hazardous environments.
The EK-AEP series is equipped with an optical connector from which it can output weighing results to a device in a distant safe area via optical fiber cable and an AD-1611 optical communication adapter (both sold separately).
The balance can be used in locations where ignitable concentrations of flammable gases, vapors or liquids are present for long periods. (i.e. Zone 0 or Division 1).
| Weighing Capacity | 3000 g |
|---|---|
| Minimum Weighing Value | 0.1 g |
| Repeatability (Standard Deviation) | 0.1 g |
| Linearity | ±0.2 g |
| Sensitivity Drift | ±20 ppm / °C (10°C - 30°C / 50°F - 86°F) |
| Counting Mode |
Minimum unit mass (factory setting): 0.1 g Number of samples: 5, 10, 25, 50 or 100 pieces |
| Percent Mode |
Minimum % display: 0.1% Minimum 100% reference mass: 10 g |
| Display | 7-segment LCD, 16 mm character height, with backlight |
| Display Refresh Rate | Approximately 10 times/second |
| Operating Temperature and Humidity | 0° C to 40° C (32° F to 104° F), 85% RH or less (no condensation) |
| Battery Life | Approximately 250 hours (with 4 "AA" alkaline batteries*, backlight off) |
| Weighing Pan Size | 133 mm x 170 mm (5.2" x 6.7") |
| Dimensions (W x D x H) | 190 mm x 218 mm x 53 mm (7.48" x 8.58" x 2.1") |
| Net Weight | Approximately 1.5 kg (3.3 lb) |
| Calibration Weight (not included) | 3000 g |
* To be used only with four DURACELL AA alkaline MN1500 LR6, ENERGIZER AA E91 alkaline LR6 AM3, or Panasonic AA alkaline LR6 (XJ) 1.5V batteries.
