Details

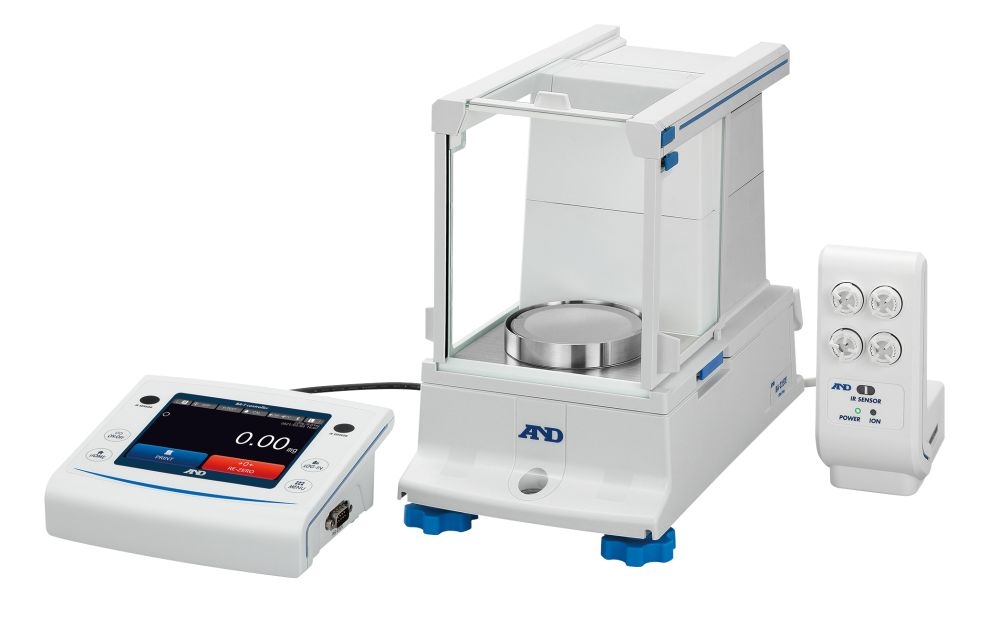

The BA-T Borealis Series of micro and semi-micro balances are designed with focus on quality, performance and durability and built with a sleek modern and user-friendly design. Standard features include touch-screen display, automatic doors, touchless IR sensors, USB-A and USB-B, Bluetooth, Ethernet TCP/IP, RS232 and an external ionizer.

Capacity	51 g / 120 g ^*v
Readability	0.01 mg / 0.1 mg
Repeatability (Standard Deviation) ^*i	0.030 mg (for 50 g) 0.1 mg (for 100 g)
Minimum Weight (typical) ^*ii	50 mg
Linearity	±0.2 mg
Stabilization Time (typical when set to FAST)	Approximately 7 seconds / 3 seconds
Internal Weight ^*iii	Approximately 100 g
Sensitivity Drift	±2 ppm / °C (10°C to 30°C / 50° F to 86°F, when automatic self sensitivity adjustment is OFF)
Operating Environment	5°C to 40°C (41°F to 104°F), 85% RH or less (non-condensing)
Display Unit	5" WVGA, TFT LCD color touch screen (resistive type) with two IR sensors
Display Refresh Rate	5 times/second or 10 times/second
Units of Measure	mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), and % (percent mode)
Counting Mode	Minimum unit mass = 0.1 mg Number of samples = 10, 25, 50 or 100 pieces
Percent Mode	Minimum 100% reference mass = 10.0 mg % readability = 0.01%, 0.1%, 1% (depends on the reference mass stored)
Communication Interface	RS-232C (D-Sub 9P), USB-A, USB-B (mini B), Ethernet (TCP/IP), External key input × 2, Bluetooth^{® *iv}
Applicable Weights for Calibration Test / Sensitivity Adjustment	Any weight between 10 and 100 g
Weighing Pan Size	ø 85 mm (ø 3.5")
External Dimensions	Display Unit: 182 mm W x 138 mm D x 73 mm H Weighing Unit + Breeze Break Unit: 173 mm W x 305 mm D x 284 mm H External Ionizer: 68 mm W x 129 mm D x 162 mm H
Net Weight	Display Unit + Weighing Unit + Breeze Break Unit: 6.7 kg External Ionizer: 0.4 kg
Power Supply / Consumption	AC adapter / approximately 36 VA

i. Repeatability can vary depending on the environmental conditions.

ii. Pursuant to the United States Pharmacopeia (USP) Chapter 41

iii. The mass of the internal weight may change over time due to on-site environmental conditions and/or degradation with age.

iv. The Bluetooth function is currently enabled for the US, Canada and Japan only.

v. Smart range function: automatically switches between the precision and standard ranges. Changes back to full precision range when the RE-ZERO (tare) operation is implemented.
