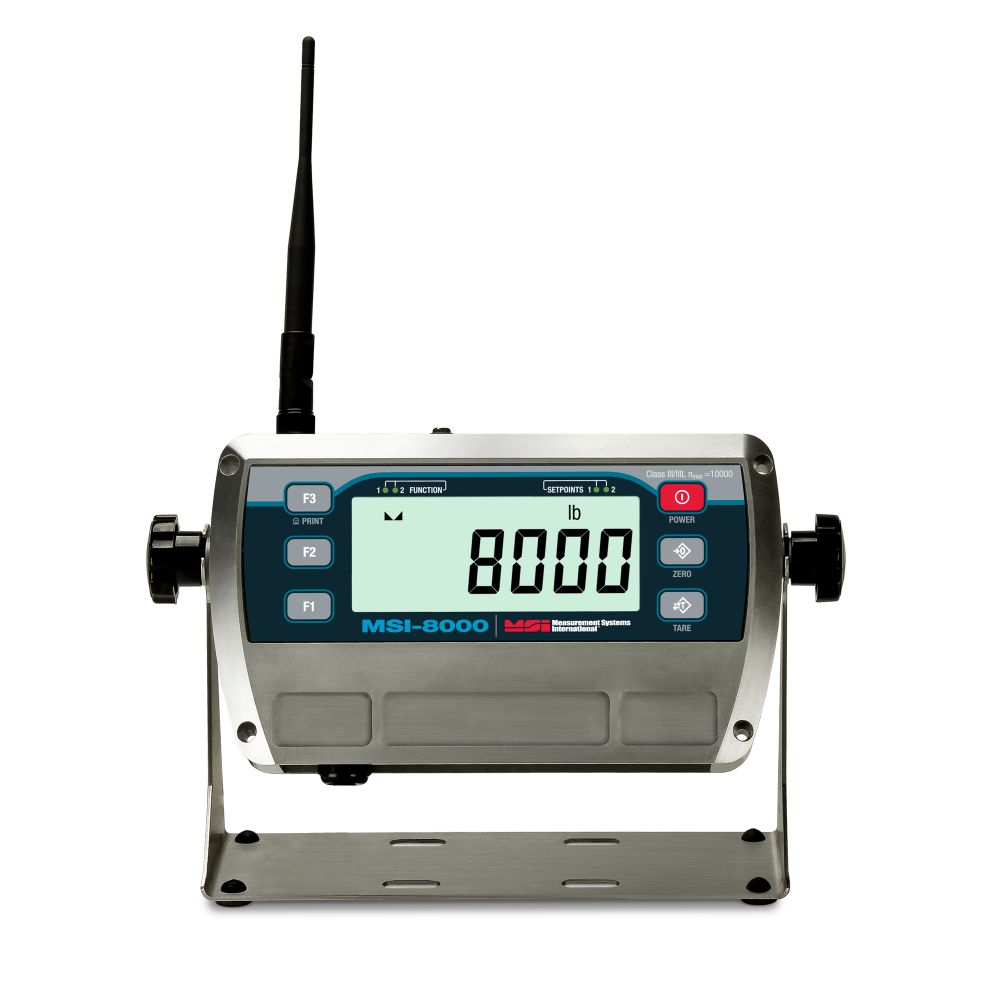

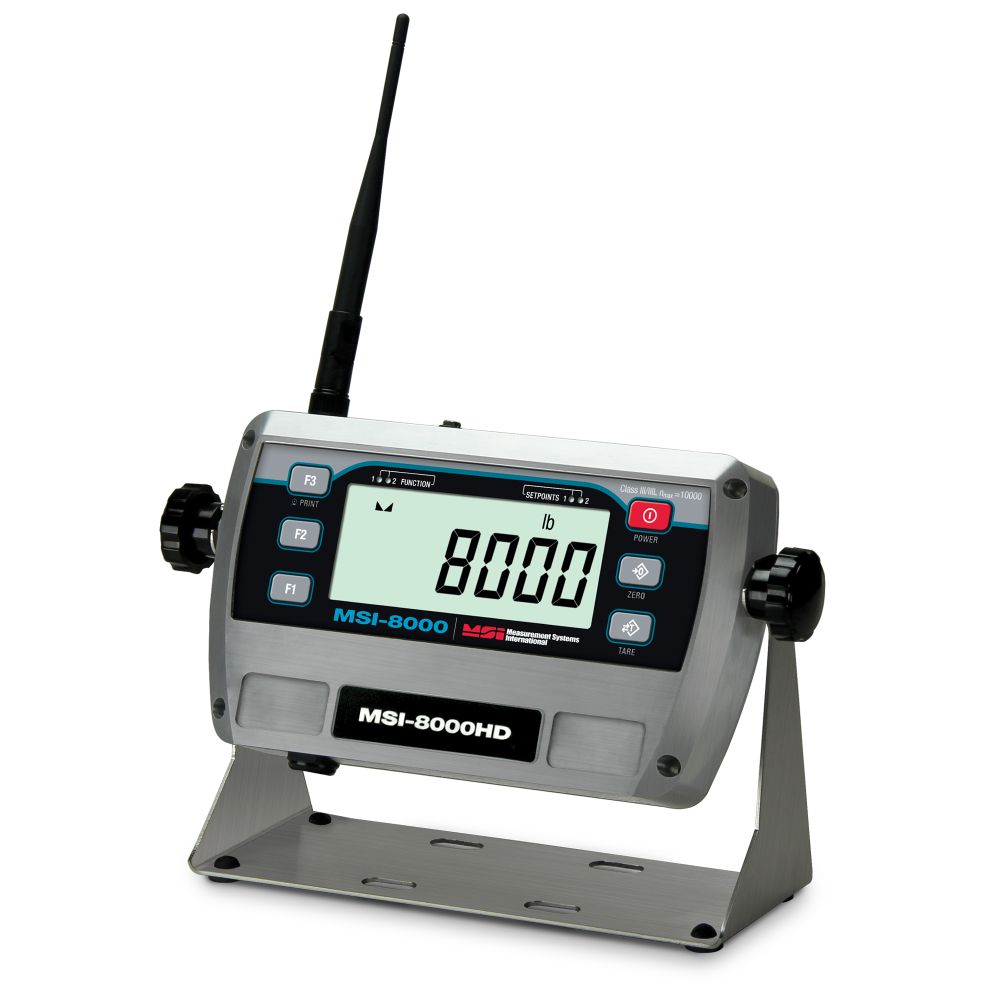

MSI-8000HD ScaleCore RF remote display, AC powered (no A/D) (RLW-PN 153591)

Item #153591

Be the first to review this product

Availability: In stock

$1,541.00
Accessories
  • RS-232/RS-485 Serial Cable, for MSI-8000HD (RLW-PN 148624 / MSI-PN 501705-0001) (PN 148624) SKU: 148624 $140.00
  • Universal 115/230 VAC 50/60 Hz (NA plug standard) battery charger for MSI-8000/MSI-8000HD battery powered device (MSI PN 503486-0001) (PN 149549) SKU: 149549 $165.00
  • MSI-8000HD spare tilt stand option kit (RLW-PN 155173) (PN 155173) SKU: 155173 $90.00
  • Wired Ethernet TCP/IP option kit for MSI-8000HD (RLW-PN 155193) (PN 155193) SKU: 155193 $430.00
  • Coil relay option kit for MSI-8000HD, 250 VAC/30 VDC 5A or 100 VDC 0.4A (RLW-PN 158779) (PN 158779) SKU: 158779 $375.00
  • Solid state relay option kit for MSI-8000HD, 60 Vpk 2.7A (RLW-PN 158780) (PN 158780) SKU: 158780 $375.00
  • Solid state relay option kit for MSI-8000HD, 200 Vpk 0.9A (RLW-PN 158781) (PN 158781) SKU: 158781 $375.00
  • Antenna extension kit, for TranSend, MSI-8000HD, MSI Wireless Scoreboards (RLW-PN 162178) (PN 162178) SKU: 162178 $490.00
  • Audible alarm option kit for MSI-8000HD, MSI-8004HD (RLW-PN 171203) (PN 171203) SKU: 171203 $375.00
  • Serial print cable for MSI-8000HD, 3 wire DTE 9-pin male (RLW-PN 176963) (PN 176963) SKU: 176963 $165.00
Overview

  • Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen

  • IP68 milled aluminum enclosure

  • Membrane keypad for remote-control functionality

  • User definable function keys for added versatility

  • Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000, MSI-7001 TranSend, MSI-9600HT and MSI-6360

  • Swivel tilt stand

Details

Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavy duty version of the reputable handheld MSI-8000 RF remote display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.

User-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD meters may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD. Wi-Fi, Ethernet or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting.

Enclosure NEMA 4, IP68 milled anodized aluminum with O-ring gaskets
Keypad On/Off, Zero (100%), Tare, Print, and two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching
Display Six-digit, 1" (26.4 mm) LCD
Units Displayed Pounds, kilograms, tons, metric tons, kilonewtons
Annunciators Stable, COZ, Peak, kg, kN, lb, M, Ton, Setpoint, function LEDs. Channels: 1, 2, 3, 4 and TTL
Power 90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC; optional battery power module available
Temperature Range

Operating: -4°F to 140°F (-20°C to 60°C)

Certified: 14°F to 104°F (-10°C to 40°C)

RF Remote Channels Up to four remote sensors, monitored individually, in pairs, or sum all (non-A/D version only)
Excitation 4.8V current limited and over-voltage protected
Filtering Off, Low, Hi-1, Hi-2
RF Radio Link 2.4 GHz 802.15.4, Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
RF Effective Range Typically 100 to 300 ft, line of sight
Communication Ports Dual RS-232 Comm Ports
Approvals NTEP COC#15-110 (-10°C to 40°C)
