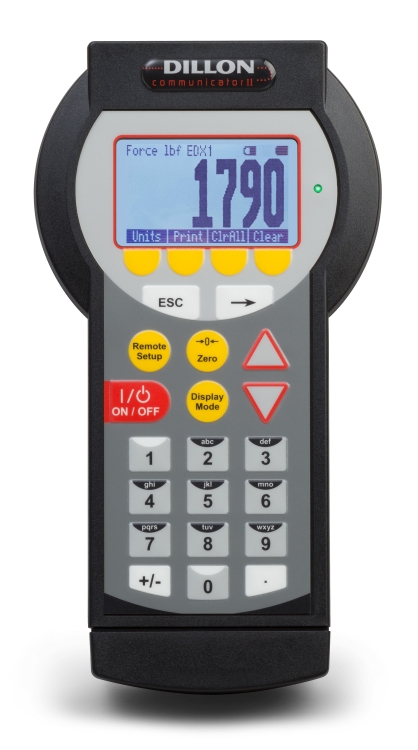

Communicator II with radio, display backlight and 105dB audible alarm (DIL-PN AWT05-509199)

Item #AWT05-509199

Be the first to review this product

Availability: In stock

  • Communicator II to EDXtreme cable, LEMO to LEMO, RS-485, 50 ft / 15 m (DIL-PN 36057-0071) (PN ) SKU: $350.00
  • Computer serial cable with 9-pin D connector, 12 ft / 3.6 m (DIL-PN 36057-0022MTS) (PN ) SKU: $200.00
  • Mains power supply, 100-240 VAC/5V to RS-232 for "Red" EDXtreme/Communicator II/Quick Check (DIL-PN AWT25-501124) (PN ) SKU: $560.00
  • Protective rubber sleeve, gray, for Communicator II, recommended for outdoor applications (DIL-PN AWT20-508223) (PN ) SKU: $180.00
  • 9-pin RS-232 to USB converter (DIL-PN AWT05-505714) (PN ) SKU: $115.00
  • Data export pack: includes all cables and interfaces to connect from the unit directly into PC (DIL-PN AWT05-509279) (PN ) SKU: $405.00

Communicator II with radio, display backlight and 105dB audible alarm (PN AWT05-509199)

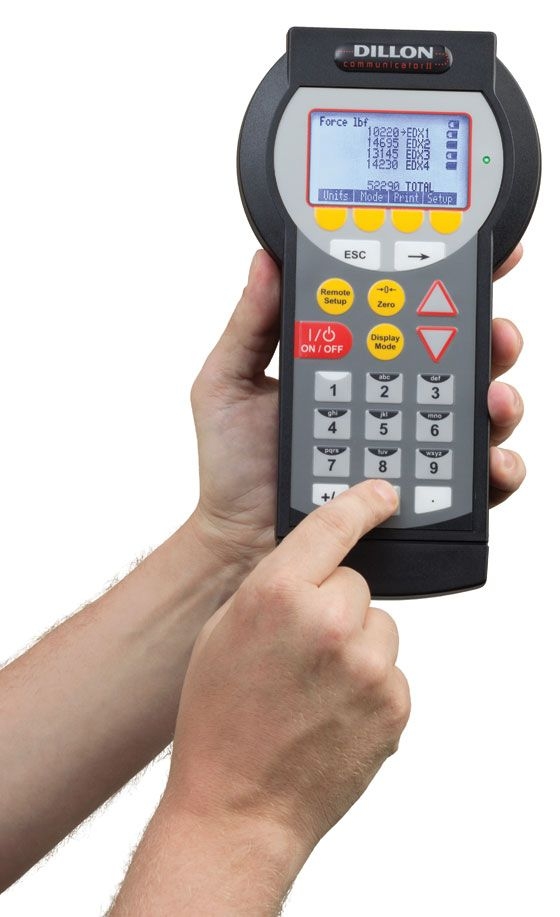

The Communicator II can remotely view and control one or several EDXtreme instruments simultaneously via radio frequency. If the EDXtreme is not equipped with radio, then a RS-485 cable will be required between the EDXtreme and Communicator II. Information is easily sent to computer from a radio Communicator II via a serial cable.

Communicator II Specifications:

Enclosure Designed to NEMA 3/IP54 with optional sleeve. Suitable for protected outdoor use.
Instrument Size 9.5" x 5" x 2.5" (241 mm x 127 mm x 64 mm)
Accuracy Not applicable. Only sends and receives digital information.
Display 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
Battery Life Up to 80 hours continuous radio using 4 "AA" alkaline batteries
Operating Temperature -4°F to 158°F (-20°C to 70°C)
Connectors Sealed connectors may be used for serial communications and wired connection to an EDXtreme dynamometer.
RS-232 Communication Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Included with Remote Carry case and batteries
Approvals CE

Radio Specifications:

FCC Certified For unlicensed low power devices. No radio licensing or permits required for normal operation. (In the US and Canada. Check local ordinances in other countries.)
Frequency ISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz
Output Level 10 mW (10 dBm)
Display Update Rate 1 time per second
Number of Links Remote Can Control Up to 15 addresses
Configuration Address Automatic and configurable
Antenna Integral antenna
Range Open-air range up to 600 feet (200 m), line-of-sight. Indoor range dependent upon environment with 300 feet (100 m) common, dependent on environment. Subject to CE marking. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications.
