Rice Lake Weighing Ready-n-Weigh System CW-90XB Bench Scale with 680 Synergy indicator, 10 lb capacity, 10" x 10" platform, NTEP approved

Item #201410

Be the first to review this product

16%off

Availability: In stock

List Price: $2,272.00

Now: $1,908.00

You Save $364.00
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $95.00
Overview

  • Package includes scale with IP69K stainless steel environmentally sealed load cell with an indicator and 12-inch column

  • Factory calibrated, with indicator setup and configured for 5,000 divisions

  • Scale includes rubber feet and removable top cover

  • AC power

  • LED display

  • Battery backed time and date

  • Standard RS-232 serial ports

  • Standard Ethernet TCP/IP

  • Numeric keypad

  • NTEP Approved

Rice Lake Weighing Ready-n-Weigh System CW-90XB Bench Scale with 680 Synergy indicator, 10 lb capacity, 10" x 10" platform, NTEP approved

Details

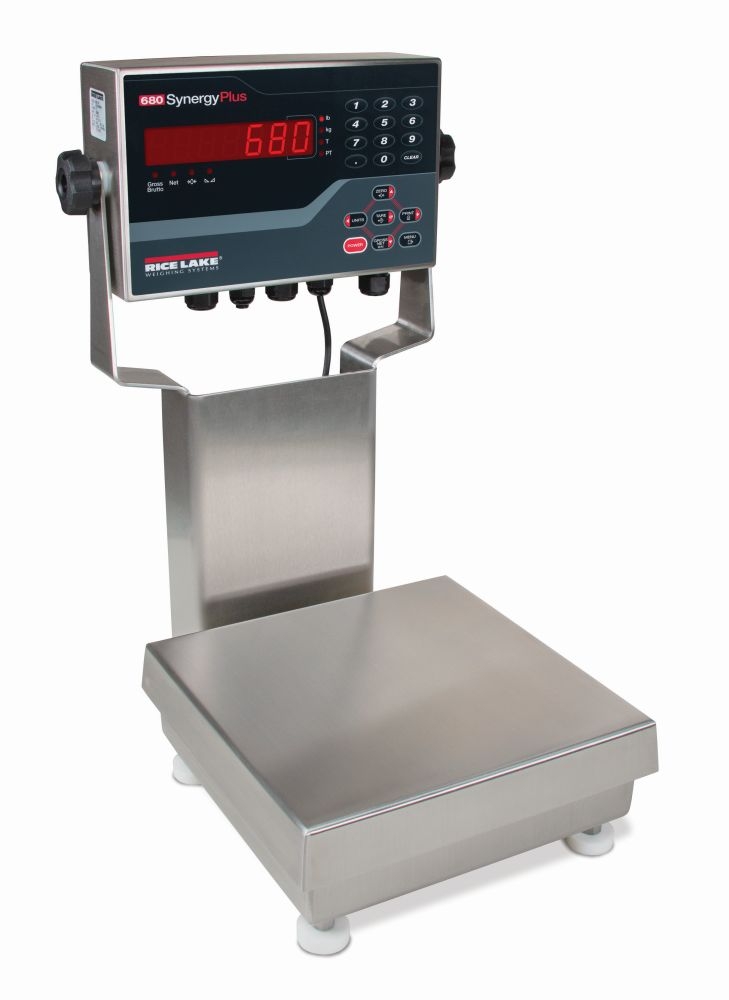

The CW-90XB Bench and Indicator System is a complete bench scale and indicator package. Pair the CW-90XB platform with one of our select digital weight indicators for a system used for general purpose weighing, straightforward automation and a wide range of applications. Each bench scale system includes a column and arrives factory calibrated for quick setup.

CW-90XB Specifications
Platform Dimensions 10" x 10" x 4.25"
Platform Capacity 10 lb
Construction 304 stainless steel
Load Cell IP69K, stainless steel hermetically sealed
Maximum Overload 180 to 200%, depending on capacity
Overload Protection Five-point, independently adjusted
Cable Length 34 inches
Approvals

NTEP CC 95-072, Class III 5,000 d

Load cell is FM approved

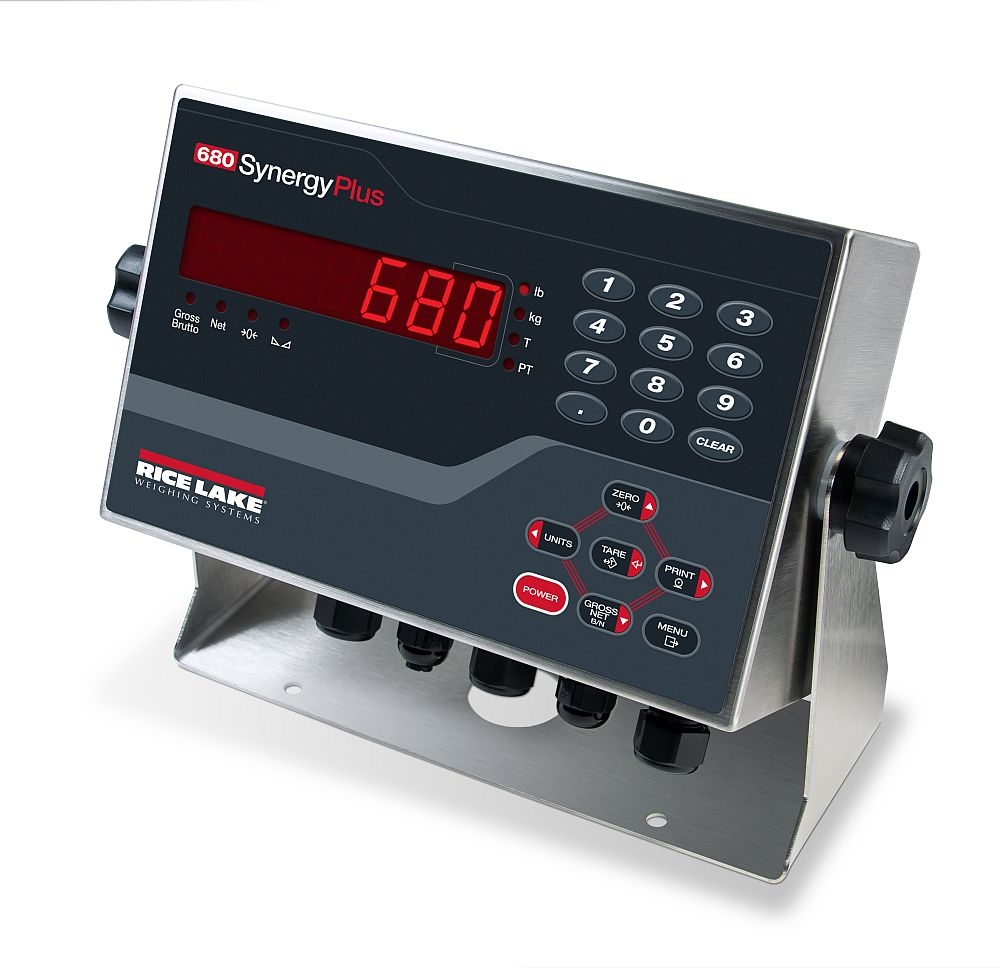

680 Synergy Indicator
Capacity x Resolution 10 lb x 0.002 lb
Display LED, seven 0.8" (20 mm) tall, seven-segment digits
Power

Line voltage: 100-240 VAC

Frequency; 50-60 Hz

Power consumption: ~ 2 W (AC) with one 350 ohm load cell, 15W max
Communication Ports

Two RS-232 (three-wire)

RS-485/422 (five-wire)

Micro USB (device)

Ethernet TCP/IP (10/100)
Keys/Buttons Flat membrane panel, tactile feel (18 buttons plus ON/OFF)
Status Annunciators Eight LED annunciators
Rating/Material IP69K; IP66 with RJ45; AISI 304 stainless steel
Approvals NTEP CC 19-021, Class III/IIIL, 10000d
