Details

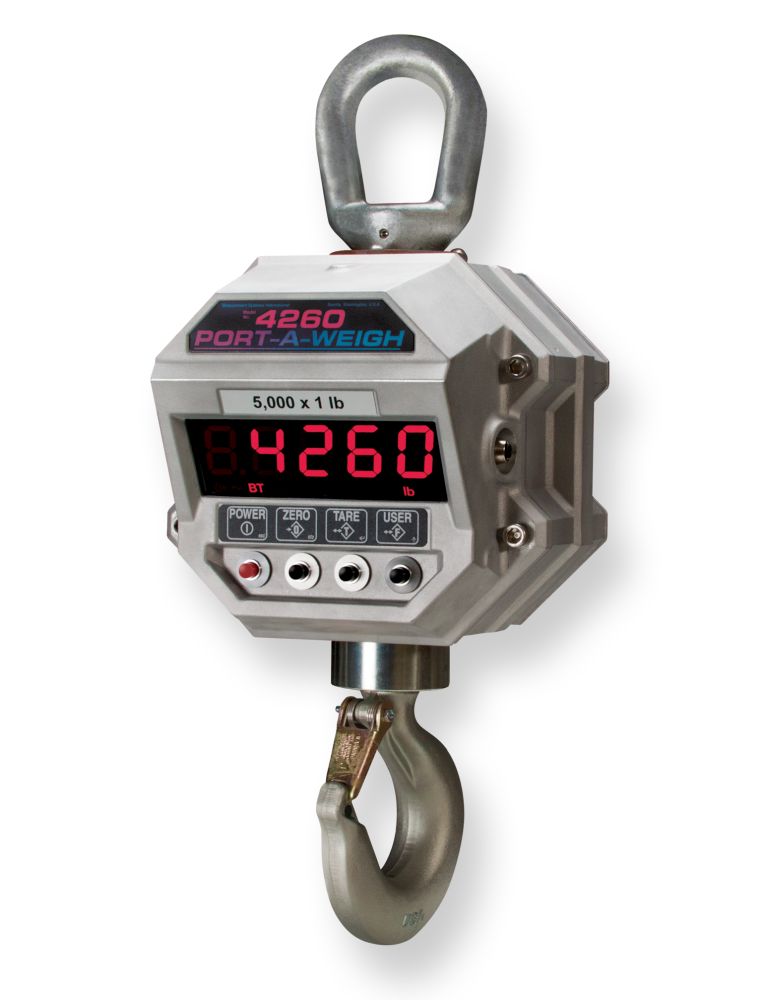

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.
| Capacity | 30,000 lb (15,000 kg) |
|---|---|
| Resolution * | 10 lb (5 kg) |
| Accuracy | ± 0.1% + 1d of applied load |
| Resolution | 2000 to 5000 d standard |
| Enclosure | NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum |
| Lifting Eye, Shackle & Hook | Crosby® or equal with 360° thrust-bearing swivel hook |
| Design Overload | 200% safe / 500% ultimate |
| Functions |
Power: Turns Unit ON or OFF Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration) Tare: Tares applied load and displays weight in Net mode F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD |
| Display | 1.2" (30 mm), 5-digit, programmable LED, multi-color (red, orange, and green) |
| Displayable Units | Pounds or kilograms selectable |
| Annunciators | COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, Setpoints |
| Power | 12 volt rechargeable battery, 115/230 VAC battery charger is included |
| Operating Time | Up to 200 hours between charging with typical use, less with optional RF Modem |
| Temperature Range |
Operating: -40°F to 122°F (-40°C to 50°C) Certified: 14°F to 104°F (-10°C to 40°C) |
| Auto-Off Mode | Select for 15, 30, 45 minutes, 1 hour or Off |
| Auto Sleep Mode | Power down during non-use and power up with weight change or any key press |
| Service Counters | Counts number of lifts over percentage of capacity and lifts over capacity |
| Calibration | Digital |
| Filtering | OFF, LO, HI-1, HI-2 selectable |
| Warranty | One year limited |
| Approvals | NTEP CC 19-122 |
* Resolution subject to change for NTEP Certified units
